- Model Name/No: ZX-G12
Easy Installation:
- Easy to install & affordable wireless home security system. Simply install mobile app & add sensors by following the step by step process in mobile app. All round 24x7 protection for Home, Shop or offices.
WiFi & GSM Connectivity:
- Dual protection with WiFi & GSM Sim connection. D3D home security system send real time alerts on mobile application and also send SMS & Phone Call using the GSM Sim card. Extra backup protection in case any of the one connectivity is lost.
Mobile Control:
- Control your D3D home security system direct from mobile phone. Now where ever you are in the world, you can lock/unlock your home security system easily with mobile app.
Inbuilt Home Automation :
- Hybrid burglar alarm system with inbuilt home automation functions. Control home lights or switch on/off AC, fan or water geyser.
Multiple Sensors:
- Compatible with more than 1k different types of sensors i.e Motion Sensor, Fire Sensor, Gas Sensor etc.
- INTRODUCTION
- FEATURES
- SPECIFICATION
- PACKING LIST
- ONLINE DEMO
- INSTALLATION VIDEO
- DOWNLOAD
- FAQs
- REVIEWS

 24X7 Security GaurdÂ
D3D Home Security System system is an easy-to-install, affordable way to protect your home and family. The system features a loud alarm that will scare away any burglars and alert you and your neighbours of an attempted break-in. The alarm can be activated manually or automatically, depending on your needs.

 Protection By D3D Home Security SystemÂ
D3D Home security alarm system is a system that uses different type of sensors to detect an unauthorized entry into a building. When an unauthorized entry is detected, the alarm system will sound a warning using inbuilt or external siren and at the same time will send notification alerts via SMS & Call to the user mobile numbers.

 Motion & Door SensorÂ

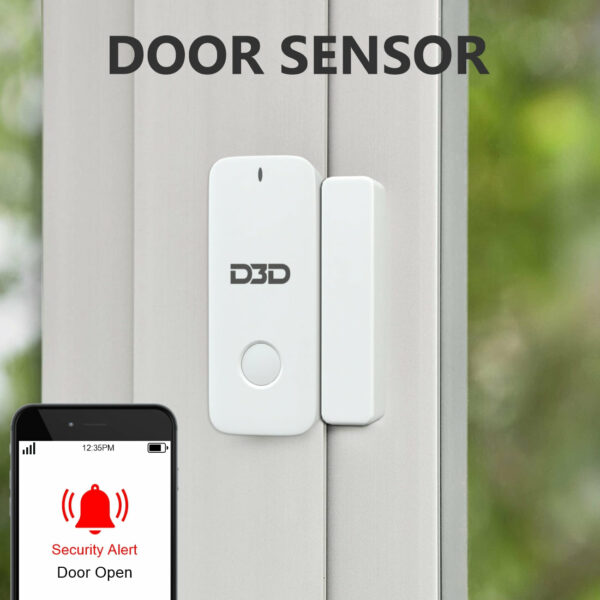

Door / Window Sensor: Door sensors protected entry from door or windows. Whenever an intruders try to open the protected door, D3D sensors get activated and send alerts on user mobile phone.

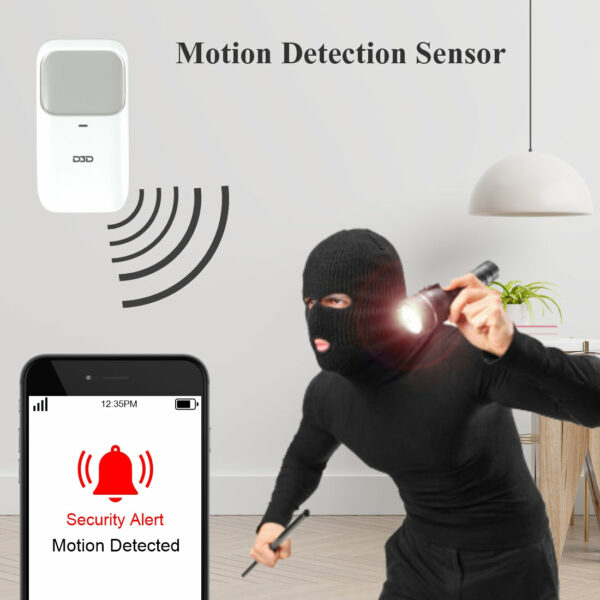

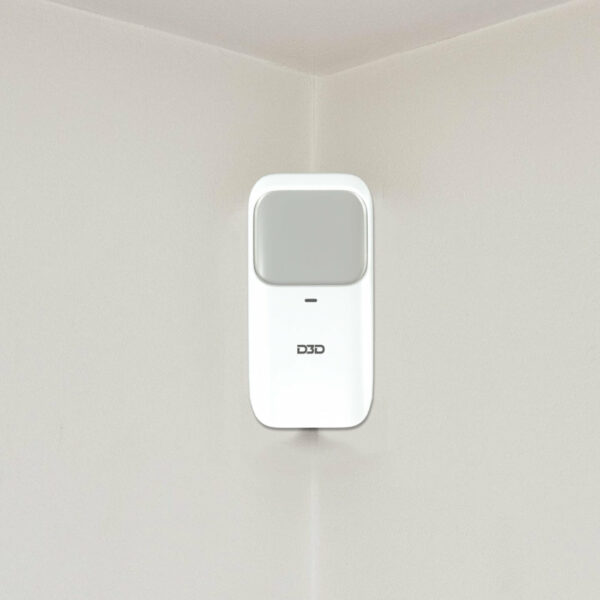

Motion Sensor: A motion detection sensor is a device that is used to detect movement. Motion sensor are mainly used in area where the intruders can enter without detected by Door or window sensors

 Alert NotificationÂ
Working as a personal security guard, D3D Home Security system keep protecting your home family round the clock. With an option to add more than 1000 types of different sensors, you can be rest assured that no one can enter your home without your permission. Powered with WiFi & GSM SIM, D3D system send real time alerts on user mobile phone.

 Two Way AudioÂ
With Inbuilt Mic & Speaker, you can talk with your family members direct from D3D control unit. Now whether you want to give warning to any intruder or alert you family members, you can directly speak in your mobile phone and other will listen from D3D control unit.

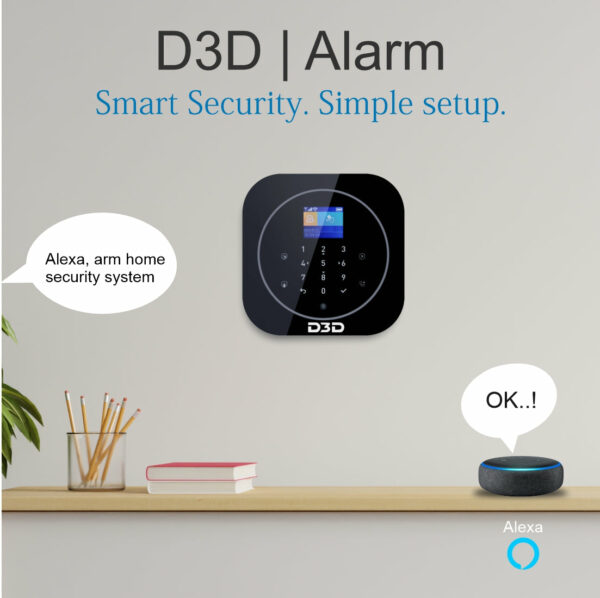

 Work with AlexaÂ
Control your home security with voice command. Simply ask Alexa to lock or unlock your D3D security system. You can easily disarm your D3D Security System when you get home, without having to fumble with a key or remote.

 Wifi & GSMÂ
Powered with Dual communication mechanism, D3D system can be operated & controlled direct from mobile phone using the internet or GSM SIM card. There are many benefits of controlling your home security with your mobile device. You can easily Lock / Unlock your D3D system from anywhere in the world or can simply control your home lights or other electronic devices.

 Power Backup Â
With inbuilt Lithium-lion battery, D3D system keep protecting your home or business even if the power supply is cut off. User will also get instant alert on mobile phone when the power is cut off or restored back.

 Easy InstallationÂ
Easy to install & operate DIY security system. Anyone can install D3D Security System at home in less than 5 minutes without having any special technical or electric knowledge. With wireless sensors, there is no need to do any messy wiring. Following the step by step installation process, simply configure all wireless sensor with mobile application and install the system. Along with detailed user manual provided with the pack, step by step installation videos are also available

 How D3D Security System Work Â
A brief overview of how D3D Home Security System protect your home & family
1- D3D motion & door Sensor detect any unwanted entry or intrusion in the protected area. Or fire or LPG gas leakage is detected by fire & gas sensor
2- D3D Security system will sound inbuilt siren and alerts your neighbours and family members
3- D3D System will send app notifications & SMS alert on user’s mobile phone. System will also call on user mobile phones to notify the security breach.
4- Using the inbuilt mic & speaker of the D3D Security System, user will listen any conversation in protected area and give warning to intruders.

Security ExpertÂ
Expert in Security System & CCTV solution, D3D is India’s first Security brand to provide easy to install & affordable security solutions that are specially designed according to India’s security need.

 Customer SupportÂ
With India based service & sales centre, D3D customer support team is always there to help you. Available on Phone call / Live Chat / Email / Whatsapp, you can contact support team for any installation query or if want to claim product warranty.

 Data ProtectionÂ
It’s not only your home that need protection, but also your personal data. Using the state of art 1020 bit data encryption technology, all alerts & SMS are sent using D3D secured server, so that no can hack your security system.

 60+ India Locations Â
With global presence in UK, Europe, USA, Australia and Canada, D3D have more than 60+ sales & distribution centres around all states in India.
- WIFI & GSM: Wireless security system powered with Wi-Fi & GSM technology. All alerts and data communication via WiFi. No need to worry about GSM SIM bill. GSM Sim activated when WiFi disconnected.

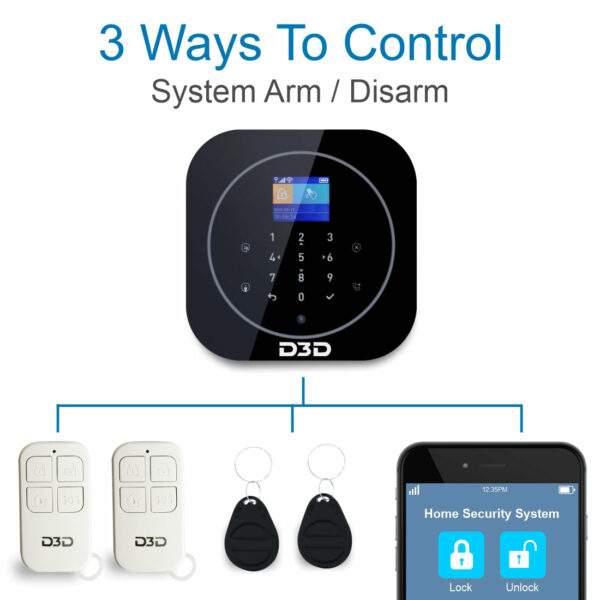

- REMOTE & APP CONTROLLED: Include 2 remote controls & 2 RF card to lock /unlock the system. Fully featured Smart Life mobile application to control system from anywhere in the world.
- FULL HOME AUTOMATION: Add upto 90 types of additional sensors i.e. Fire / Gas / Water Leak / Door / Window Sensor etc. Smart Life app to control home lights, AC, fridge etc.
- DUAL PROTECTION:b In addition to mobile app alerts, system call & send SMS alerts upto 10 family members. Two way audio communication to chat with family members or simply monitor. Inbuilt Loud siren to alert neighbours.
- WIRELESS EASY INSTALLTION: Complete wireless system. Battery powered sensors. Inbuilt battery backup for control unit. Easy home installation in less than 10 mins. India Customer care support via phone / WhatsApp / Live chat.
Â
Technical Specification: | |||
Model No. | ZX-G12 | ||
App Name | Smart Life | ||
Power Supply | DC5V 1A | ||
Sound level | 100dB | ||
Backup Battery | Lithium battery 3.7V 500mA | ||
WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz | ||
2G GSM frequesncy | 850/900/1800/1900MHz | ||
Wireless frequency | 433MHz | ||
Wireless transmission range | 100meters(Open area) | ||
Support Remote Control Quantity | Max 10pcs | ||
Alarm Call number No. or SMS number No. | 5 groups | ||
Two-way audio | GSM support | ||
Support Voice Control Compression | Work with Amazon Alexa/Google Assistance | ||
Timing Control | Arm/Home Arm/Disarm | ||
Work Mode | Arm/Home Arm/Disarm | ||
Color | White/Black | ||
Material | ABS | ||
Operation Temp. | –10°C to +50°C | ||
Humidity | 5%--95% non-condensing | ||
Installation | Wall-mounted | ||
Dimension | 18.5*17*9cm | ||
Weight | 550g |

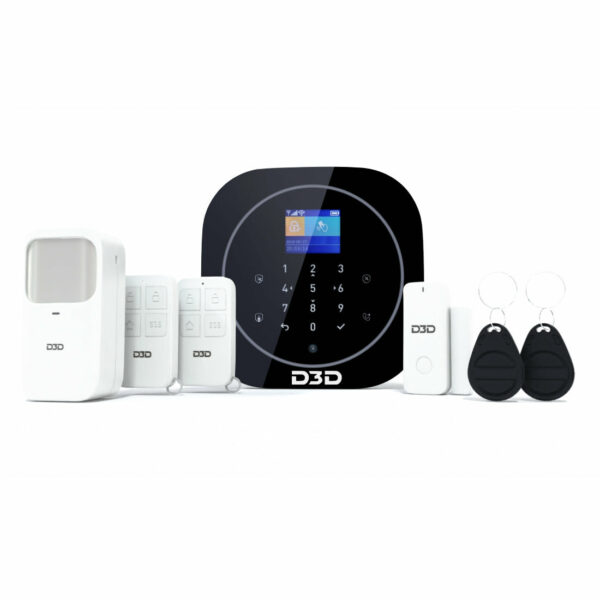

Standard Package Including:
1x Control Unit Black
1x Door Sensor
1x Indoor PIR Sensor
2x Remote
2x RFID Card
1x Adapter
1x Wall Mount Bracket and Screw
1x User Manual
Â
Â
User Manual
Mobile App
Q1-If both wifi and sim are used, will we get 2 notifications? What happens if wifi is not working temporarily due to connectivity issues.?
The first priority is wifi based notification on your mobile application if there is no wifi connection then it will automatically comes on GSM sim based notification, via calls or sms.
Q2-does it have battery backup in case power failure?
Yes, Control unit have battery backup of upto 10 hours.
Q3-What is the coverage area of main Control unit ?
In open area, its coverage area is 100 meter.
Q4-What is the warranty of this?
This product has 1 year warranty you just need to register it by our team.
Q5-What is the range of PIR sensor?
Range for PIR sensor is 15 Feet
Q6-How much backup provided by Alarm system?
It will work with power supply and if there is not power supply then it will provide battery back up of 8-10 hours.
Q7-What is range of pir and magnetic/all sensors?
Range of PIR sensor is 110 degree angle, 12 meter and Door sensor Transmission distance 50-60 meter.
Q8-Will the system call my phone number via gsm sim? I prefer calling over text?
Yes, the system will give you a notification via sms then you will get a call.
